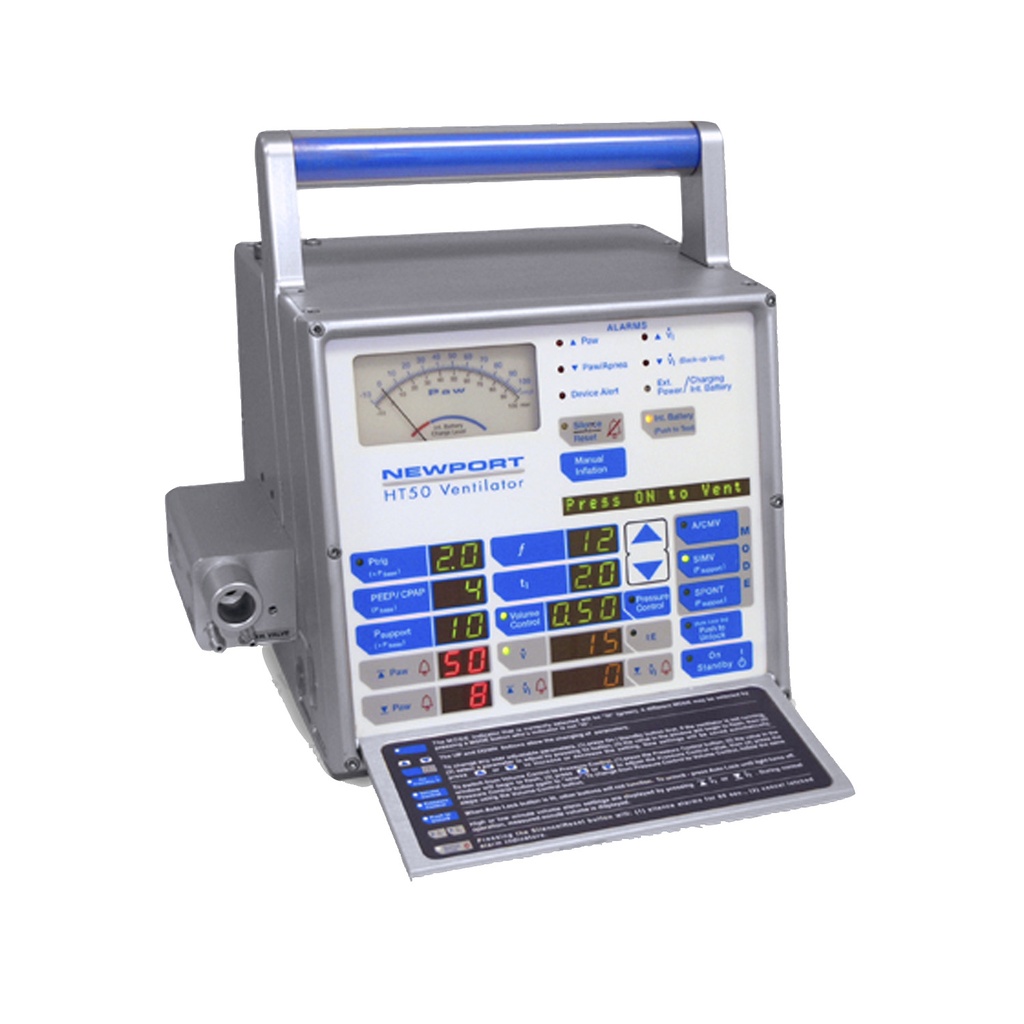

Newport Ventilator HT-50
https://colmed-colmed-v14.odoo.com/web/image/product.template/44201/image_1920?unique=c74d219

₹ 0.00 0.0 INR ₹ 0.00

₹ 0.00

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee

    Shipping: 2-3 Business Days

    DETAILS

    The Newport HT50 Ventilator is the value leader in ventilatory care. With its rugged construction, easy trigger sensitivity, and fast re-charge from AC or external DC, the HT50 Ventilator is ideally suited for extended care, transport, hospital and homecare applications.

    This is the ventilator you've been waiting for - compact, lightweight, unsurpassed reliability, and self contained. Its comprehensive, versatile features meet the demands of almost any healthcare setting. Suitable for both pediatric (10kg) and adult patients for invasive or non-invasive ventilation, it's easy to use and inexpensive to maintain.

    Features

    • Volume or Pressure Control Ventilation
    • Invasive or Non-Invasive Ventilation
    • Pressure Support
    • PEEP/CPAP, Built-in
    • Comprehensive Alarms/Monitoring
    • Internal Battery, long lasting with fast recharge
    • Unique Gas Delivery System Requires No External Air Compressor
    • Optional Air/Oxygen Mixer for high pressure 0.21-1.00
    • Optional Blending Bag for Low Flow Systems

    SPECIFICATIONS

    Physical Weight & Dimensions

    • Height: 10.24 inches (26 cm)
    • Width: 10.63 inches (27 cm)
    • Height: 10.24 inches (26 cm)
    • Weight: 15lbs (6.8kg) (w/o humidifier)

    Patient Range

    Pediatric (10 kg) - Adult

    Control Settings

    • Modes (Pressure or Volume): A/CMV, SIMV, SPONT
    • Volume Control (Tidal volume): 100 to 2,200 mL
    • ƒ(Frequency): 1 to 99b/min - tl (Inspiratory Time): 0.1 to 3.0 sec
    • PEEP/CPAP: 0 to 30 cmH2O/0 to 30 mbar
    • Psupport (Pressure Support): 0 to 60 cmH2O/0 to 60 mbar
    • V (Flow): 6 to 100 L/min
    • I:E Ratio: 1:99 to 3:1
    • Pressure Control (Target Pressure): 5 to 60 cmH2O/5 to 60 mbar
    • P trig (Sensitivity): -9.9 to 0 cmH2O/-9.9 to 0 mbar
    • Panel Lock: ON/OFF
    • Manual Inflation: 3 sec maximum (single operator controlled breath)
    • FIO2: .21 to 1.00

    Monitor Parameters

    • Paw (Peak, Mean, Base): VT (insp. tidal volume); Proximial Airway Temperature: (insp. minute volume)
    • Internal Battery: ƒ total (total frequency)
