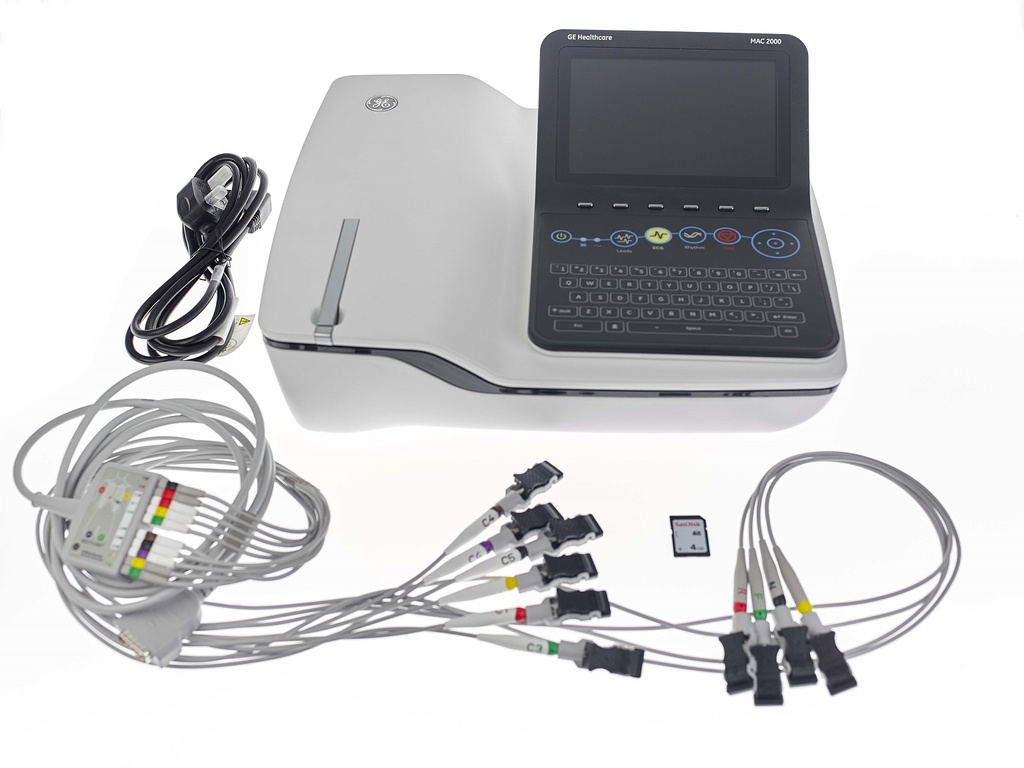

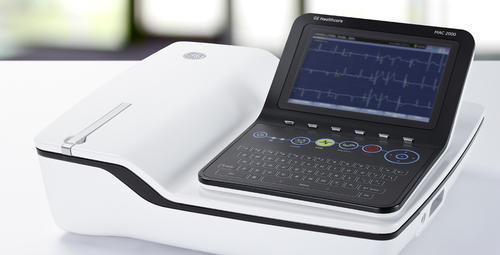

GE MAC 2000 - Resting ECG system

The MAC 2000 enables you to be productive, from the first ECG

• Workflow enhancements with connectivity to EMRs, CS Diagnostic System and the MUSE* ECG Management systems, or send reports to a shared directory on a PC

• Connectivity with LAN, Wi-Fi, serial port, modem, or SD card

• PDF and XML export capabilities

• Marquette* 12SL* ECG analysis program for clinical decision support

• Supports paperless workflow with options for bidirectional communication, including an option for orders

• Easy-to-read 7" color display is configurable to meet your needs

• On-screen preview of 12-lead waveforms and ECG results helps streamline review and diagnosis

• Automatic capture of 10-second ECGs with one-touch operation

• Hookup Advisor* signal quality Analysis Program

• Internal storage for up to 200 ECGs

• Gender-specific interpretation provides improved sensitivity to Acute Myocardial Infarction in women



  Technical Specifications



  Electrical
  Power supply	Internal AC/DC or battery operation
  AC/DC operation specifications	Input voltage: 100 to 240 VAC ±10% Input current: Maximum 1.5A in voltage range 115 V to 230 V AC Input frequency: 47 to 63 Hz
  Battery specifications	Battery type: Replaceable and rechargeable, Lithium Ion Battery capacity: 14.4V and 16.8V Max @ 2.2 AH ±10%; 100 single page resting ECG recordings or 3 hours (typical) of continuous monitoring without printing, at a minimum Battery charge time: Approximately 3.5 hours after low battery shut down (with device off)



  Physical specification
  Height	200 mm
  Width	390 mm
  Depth	330 mm
  Weight	Approx. 5 Kg including battery, without paper
