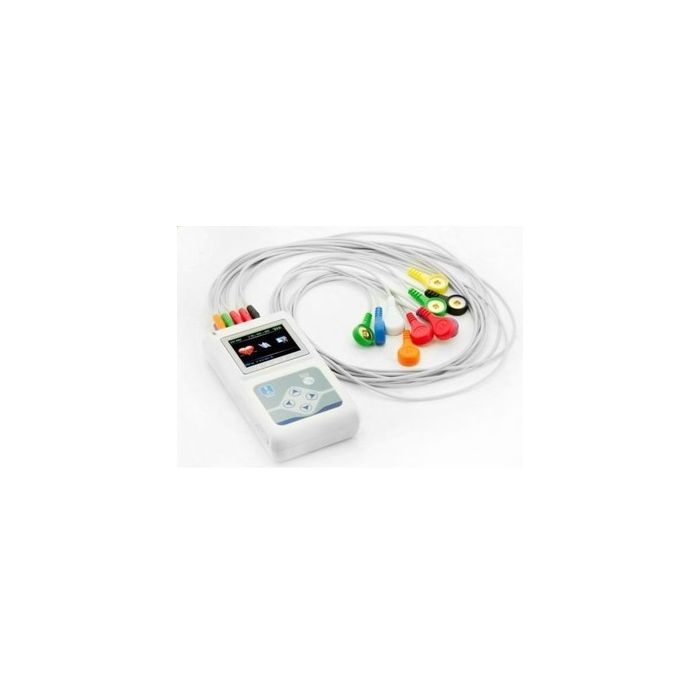

Contec ECG Holter System TLC5000 (12 Lead)

Contec ECG Holter System TLC5000 can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software

12-lead system international standard

Small volume with OLED screen and the resolution is 160*128.

This ecg system is applicable for use in medical institution and community.

₹ 67,200.00 67200.0 INR ₹ 67,200.00

₹ 60,000.00

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee

    Shipping: 2-3 Business Days

    Technical Specifications

    • Number of channels: 12 channels;
    • Power: 2 AA size batteries;
    • Scale voltage: 1mV± 5%;
    • Standard Sensitivity: 10mm/mV± 5%;
    • Noise level: ≤ 30μ V;
    • CMRR: ≥ 60dB;
    • Time constant≥ 3.2s;
    • Scan speed: 25mm/s± 5%;
    • Least measure signal: 50 µ V p-p;
    • Product safety type: Type B (Internally powered).

    Recorder Features

    • Capacity:-2 GB
    • Sampling accuracy:- 12 Bit
    • Interface:-USB 2.0
    • Record Time:- 24 hours

    Software Features

    • Sync Analyis:-Sync analysis for 12-lead, which ensures that QRS waveform can be found accurately, and no distortion.
    • Templates:- There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. And multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
    • Channel Selection:- Flexible analysis channel selection function, can choose any channel as the main analysis of the channel
    • Pacemaker Analysis:- Powerful pacemaker analysis, on the AAI, VVI, DDD etc. All pacemaker analysis.
    • Analysis of heard rate variability:- Analysis of heard rate variability with short-range 5 minutes and long-range 1 hour and 24 hours analysis of heart rate variability. One-stop printing operation, report printing process is convenient and quick
    • Abnormal ST analyzation:- Advanced ST segment analysis and myocardial ischemia total load, can for the ST abnormal analysis according to the whole and event, make the doctor can comprehensive judgment myocardial ischemia.
    • "HRT" analysis function:-"HRT" analysis can predict the risk of death in patients with myocardial infarction.
    • T-Wave alternation:-"T Wave alternation" analysis is an important index to predict malignant arrhythmia and sudden cardiac death.
    • Sleep breath pause syndrome analysis:- Unique "Sleep breath pause syndrome analysis" analysis can predict Sleep breath pause risk


    • 12-lead ECG lead wires (1 set)
    • ECG electrode 1 bag(20 per bag)
    • USB data line(1)
    • Disk(1)
    • Bag(1)
    • User manual(1)

    Physical Characteristic

    • Dimension: 111mm(L) *60mm(W) * 25mm(H)
    • Weight: About 105g(without battery)
