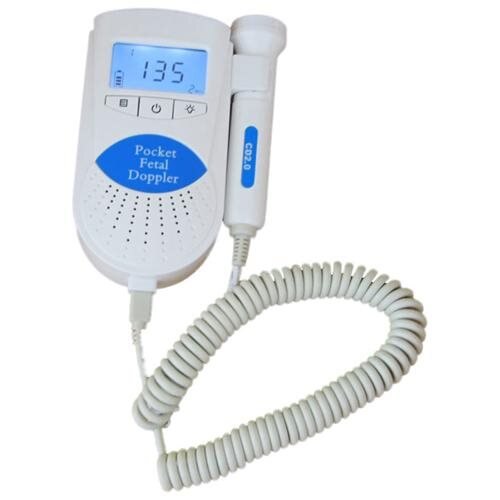

Contec Pocket Fetal Doppler Sonoline B with 2 MHz Probe
The Sonoline B Baby Heartbeat Tracker from Baby Doppler® with 2MHz Probe employs the latest technology in Baby Heart Sound Listening
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Main performance
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B applied part
LCD Display: 45 mm * 25 mm
FHR Measuring Range: 50 BPM ~ 240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: 2 BPM
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply:TWO 1.5V(AA size) alkaline battery
Probe:
Nominal Frequency: 2.0 MHz
Working Frequency: 2.0 MHz 10%
Overall Sensitivity : >100 dB
Negative Peak Sound Pressure : < 0.5 MPa
Ultrasonic Output Intensity: < 5 mW/cm2
Ultrasound Output Power: P < 10 mW
Working Mode: Continuous wave doppler
Effective Radiating Area of Transducer: 208 mm2 15%
Physical Characteristic
1. Dimension: (L)135 mm × (W) 95mm × (H ) 35 mm
2. Weight: About 180 g (including batteries)
Qualification
1. Passed FDA and CE
Accessories
.2Mhz Waterproof probe.
Built-in speaker
Three work modes: Real-time FHR display mode, averaged FHR displaymode and manual mode
LCD display
Probe inspection
Battery status indicator
Backlight
Auto Shut-Off : After 1 minute no signal, power off automatically
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Two pieces of standard 1.5V alkaline battery available which can work no less than 10 hours
Output for headphones
The probe is changeable
