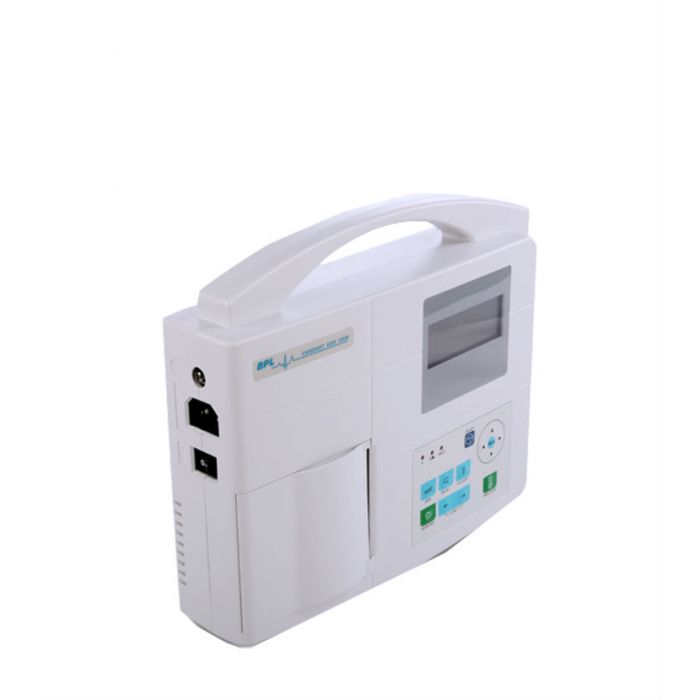

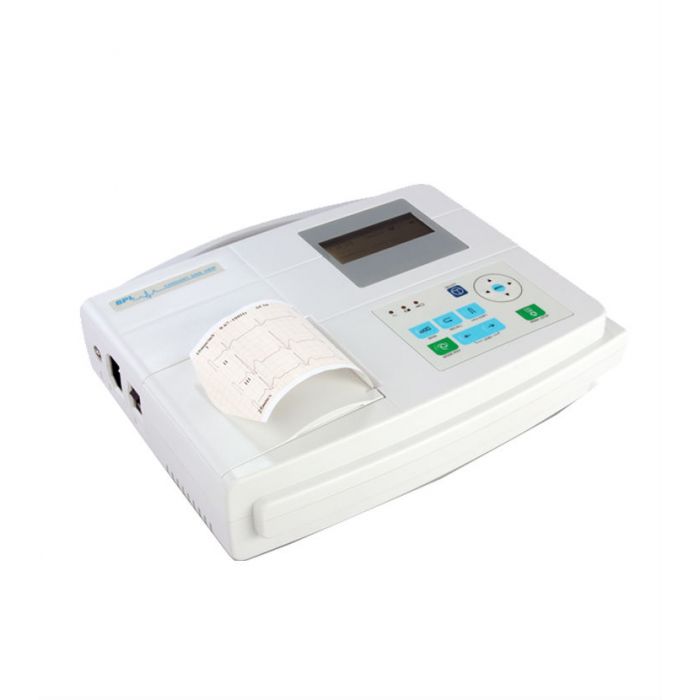

BPL Cardiart 6208 View (3 Channel)
https://www.mycolmed.in/web/image/product.template/26280/image_1920?unique=d0c82b1

₹ 50,000.16 50000.16 INR ₹ 50,000.16

₹ 44,643.00

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee

    Shipping: 2-3 Business Days

    • Simultaneous 3 Channel ECG recording with 12 lead simultaneous acquisition with auto summary
    • Built-in ECG Parameters measurement and interpretation
    • Wide screen LCD display of Patient demographics and real time ECG data option
    • Light weight design for portability - only 2.5 kg
    • High performance Li-ion rechargeable battery
    • Power line safe design, can be used both on powerline as well as battery
    • Digital filtering to remove interference from powerline, muscle tremor etc.,with automatic base line correction
    • Simultaneous 3 Channel ECG recording with 12 lead simultaneous acquisition with auto summary
    • Built-in ECG Parameters measurement and interpretation
    • Wide screen LCD display of Patient demographics and real time ECG data option
    • Light weight design for portability - only 2.5 kg
    • High performance Li-ion rechargeable battery
    • Power line safe design, can be used both on powerline as well as battery
    • Digital filtering to remove interference from powerline, muscle tremor etc.,with automatic base line correction

    TECHNICAL SPECIFICATIONS

    Input Circuit

    Floating input circuit, protection from defibrillation and pace maker

    Lead

    Standard 12 leads

    Acquisition mode

    Simultaneous 12 lead acquisition

    A/D converter

    12 bits

    Input voltage range

    +/- 5mVp-p

    Time constant

    >=3.2s

    Frequency response

    0.05Hz-150Hz

    Calibration voltage

    1mV +/-3%

    Sensitivity

    2.5, 5, 10, 20 (mm/mV)

    Input impedance

    >=50Mohms

    Input circuit current

    <=50nA

    Noise level

    <=15uVp-p

    Anti Baseline Drift

    Automatic

    Patient leakage current

    <10uA (220V-240V)

    Patient auxiliary current

    <0.1uA (DC)

    Filters

    EMG filter 25Hz / 35Hz / 45Hz / OFF

    Anti-baseline drift 0.05Hz / 0.15Hz / 0.25Hz / 0.5Hz

    Low-pass filter 75Hz / 100Hz / 150Hz

    AC filter 50/60Hz

    CMRR

    >=110dB

    Power supply

    100-240 VAC, 50Hz / 60Hz, 70VAC

    Battery

    Built-in rechargeable Li-ion battery

    14.4V for 3 hours of continuous operation

    Recorder

    Thermal printer

    Print Channels

    Manual: 3, 3/2, 1CH

    Auto: 3, 3x2, 3+1R, 1, 1+1R CH

    Rhythm: Single Lead

    Recording paper

    80mm x 20m

    Recording speed

    5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (+/- 3%)

    Weight

    Approx 2.5kg (with battery)

    Dimensions

    300mm x 260mm x 75mm

    Display

    Wide Screen Display

    External input

    100K Ohm, sensitivity 10mm/V +/-5%

    External output

    100Ohm, sensitivity 1V/mV +/-5%

    Communication ports

    Ethernet and RS232

    Standard Accessories

    Power Cord – 1pc

    Patient Cable – 1 pc

    Chest Electrodes – 6 pcs

    Limb Electrodes – 4 pcs

    Thermal Recording Paper – 1 pc
